AI-enabled satellite modem module
Certified safe for hazardous environments, this solar-powered asset tracker is easy to install and features a wide range of reporting capabilities with inputs to monitor critical functions.
Learn more about the Globalstar Application Platform.
Certified safe for hazardous environments, this solar-powered asset tracker is easy to install and features a wide range of reporting capabilities wit ...
h inputs to monitor critical functions.
Learn more about the Globalstar Application Platform.
Certified safe for hazardous environments, this solar-powered asset tracker is easy to install and features a wide range of reporting capabilities wit...h inputs to monitor critical functions.
Learn more about the Globalstar Application Platform.

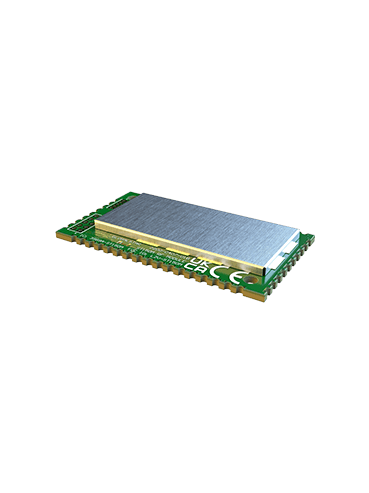

ST150M satellite modem module helps partners create new products in a fraction of normal development time and cost. The module includes a GPS receiver, accelerometer, Nordic MCU, 8MB external flash memory, integrated voltage regulator and BLE tranceiver. Its low-power architecture allows integrators to minimize battery requirements. An ST150 Dev Kit provides an ST150M module on a dev board with satellite and GPS patch antennas, all mounted on an Arduino Shield, to develop and test technology designs before committing them to hardware.
Key Features
All applications of Integrity 150
Lower entry barriers for custom applications
Modular library layer can be easily included/excluded
Rich application examples allow for faster development
Easy provisioning, connectivity, and configuration
Proprietary secure Bluetooth protocol
Connecting sensors and edge computing solutions to the device is easy and allows for the transportation of a wealth of data and critical information
Industry supported Language Application Base
Embedded benefits
Very low power consumption
Full modular certification
Unprecedented payload options
PTP (Previous Track Point)
Lower entry barriers for custom applications
Modular library layer can be easily included/excluded
Rich application examples allow for faster development
Easy provisioning, connectivity, and configuration
Proprietary secure Bluetooth protocol
Connecting sensors and edge computing solutions to the device is easy and allows for the transportation of a wealth of data and critical information
Industry supported Language Application Base
Embedded benefits
Very low power consumption
Full modular certification
Unprecedented payload options
PTP (Previous Track Point)
Specifications
- Built in programming headers
- I2C
- Vin - 3.3 Vdc Iin - 100 ma Max
- VRFin - 3.3 VdcIRFin - 500 ma Max
- VUSB - 5.0 Vdc
- Operation and Storage: -40 °F to 185 °F (-40 °C to 85 °C)
DIMENSIONS
1.10” (H) X 2” (W) X 0.16” (D)
28mm (H) X 50.8mm (W) X 4 mm (D)
WEIGHT
Approx. 0.27 oz (7.6 g) with shield
Power Better Operational Intelligence with Smart Data
Realm's application enablement platform introduces a new standard to develop AI-driven applications that define and process data at the edge. Quickly spin up vertical specific solutions at a fraction of the cost and development time and transmit data that is smarter and works harder.
- Standards Based Architecture- new features and platform upgrades that can reliably access the same hardware, APIs as previous versions with no specialized coding
- Health Monitoring – Pro-active device health monitoring, superior support
- Application Enablement Platform – Leverage industry leading BLE, Nordic C, comprehensive unified APIs
- Applications Library – Ready built library that also serves as a hotbed for new applications development
- BLE – Sophisticated libraries for sensors, updaters, configuration, and data
Coverage Map
 |
Primary Coverage |
 |
Fringe Coverage (Customers should expect to experience weakest signal) |
Coverage Details
Completion rates based on Remote Telemetry Units (RTU) that are set to transmit a single packet message 3-times (the original transmission plus 2-repeats) in the frequency appropriate for the given regions. This is an estimate of coverage only. Actual Remote Telemetry coverage may vary based on terminal location, terrain features, signal strength, and other factors affecting satellite communications. Coverage may vary. Specifications subject to change without notice. This map indicates areas of potential satellite coverage only. Actual availability of service in any particular country may be subject to government approval.
