Rugged, low-cost tracking device

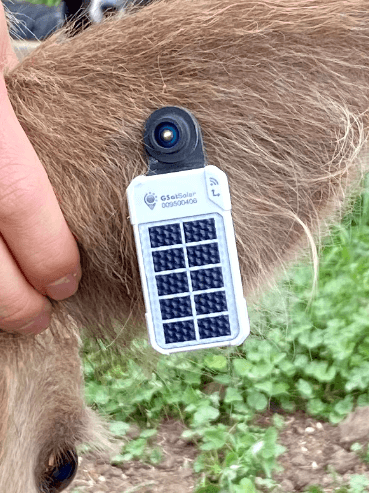

The GSatSolar is your solution for off-grid tracking of assets, remote IoT operations, and livestock tracking. The low-cost, compact, satellite-based terminal is easy to use and install and is built for tough outdoor use.
The GSatSolar is your solution for off-grid tracking of assets, remote IoT operations, and livestock tracking. The low-cost, compact, satellite-based ... terminal is easy to use and install and is built for tough outdoor use.
The GSatSolar is your solution for off-grid tracking of assets, remote IoT operations, and livestock tracking. The low-cost, compact, satellite-based ...terminal is easy to use and install and is built for tough outdoor use.

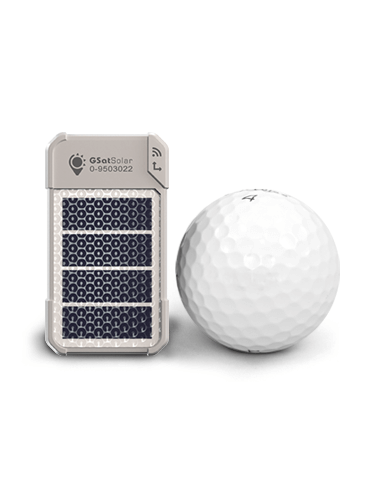

Globalstar GSatSolar is powered by a solar panel that recharges the battery. Small and light enough to go unnoticed, regardless of where or how you mount it. Rugged and reliable enough to track anything that moves, the GPS tracking device easily mounts to any fixed or mobile asset for intelligent tracking, monitoring, and integration with a multitude of wireless sensors through the configurable BLE Sensors interface.
Key Features
- Low-cost asset Tracking
- Each unit is powered by a solar panel that recharges the battery.
- Compact tracking terminal
- Tough enough for outdoor use
- Easy to use

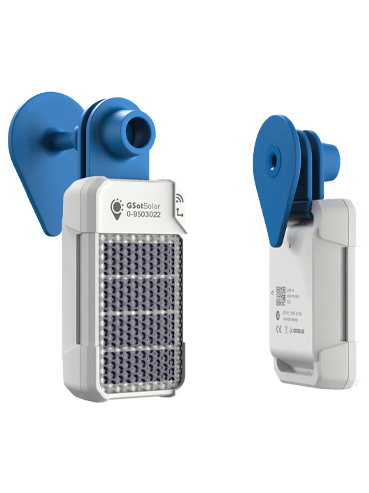

- Modular mounting options
- Each unit is powered by a solar panel that recharges the battery.
- Compact tracking terminal
- Tough enough for outdoor use
- Easy to use
- Modular mounting options
Specifications
Dimensions
Terminal: 22.2 grams (0.783oz) Animal Ear Tag: 4 grams (0.141oz) Multipurpose Clip: 5 grams (0.176oz)
Charging Method
Solar
Battery
Type: Lithium Polymer
Temperature
Max (recommended): 50C Min (recommended): -30C
Altitude
Range (recommended): 40,000 feet
Ingress Protection
IP Rating: IP68 (certification pending) Dust tight - no ingress of dust, complete protection against contact Liquid immersion up to 1M depth for 30 minutes
Certifications
FCC, Canadian ICES-003
Radio Certs:
- Length: 57.1mm (2.25")
- Width: 31.8mm (1.25")
- Height: 17.8mm (0.70")
Terminal: 22.2 grams (0.783oz) Animal Ear Tag: 4 grams (0.141oz) Multipurpose Clip: 5 grams (0.176oz)
Charging Method
Solar
Battery
Type: Lithium Polymer
Temperature
Max (recommended): 50C Min (recommended): -30C
Altitude
Range (recommended): 40,000 feet
Ingress Protection
IP Rating: IP68 (certification pending) Dust tight - no ingress of dust, complete protection against contact Liquid immersion up to 1M depth for 30 minutes
Certifications
FCC, Canadian ICES-003
Radio Certs:
- ISED
- FCC Part 15
- FCC Part 25
- IEC 62133-2
- UN38.3
- MSDS
Globalstar Mapping Services
 |
Visibility for your Business |
 |
Live & Historical Tracking, Alerts & Shared Views |
 |
Assets, Places, & Geofences |
 |
Advanced Reporting |
Coverage Map
 |
Primary Coverage |
 |
Fringe Coverage (Customers should expect to experience weakest signal) |
Coverage Details
Completion rates based on Remote Telemetry Units (RTU) that are set to transmit a single packet message 3-times (the original transmission plus 2-repeats) in the frequency appropriate for the given regions. This is an estimate of coverage only. Actual Remote Telemetry coverage may vary based on terminal location, terrain features, signal strength, and other factors affecting satellite communications. Coverage may vary. Specifications subject to change without notice. This map indicates areas of potential satellite coverage only. Actual availability of service in any particular country may be subject to government approval.
