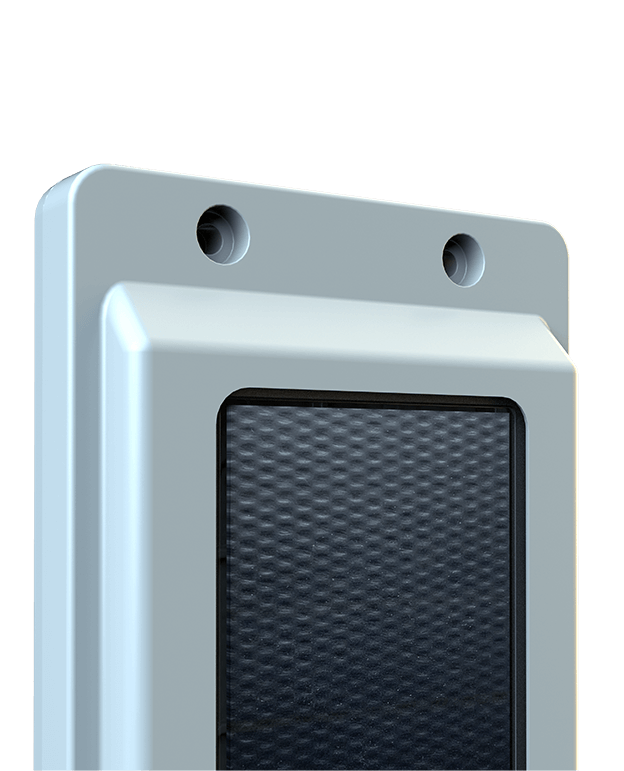

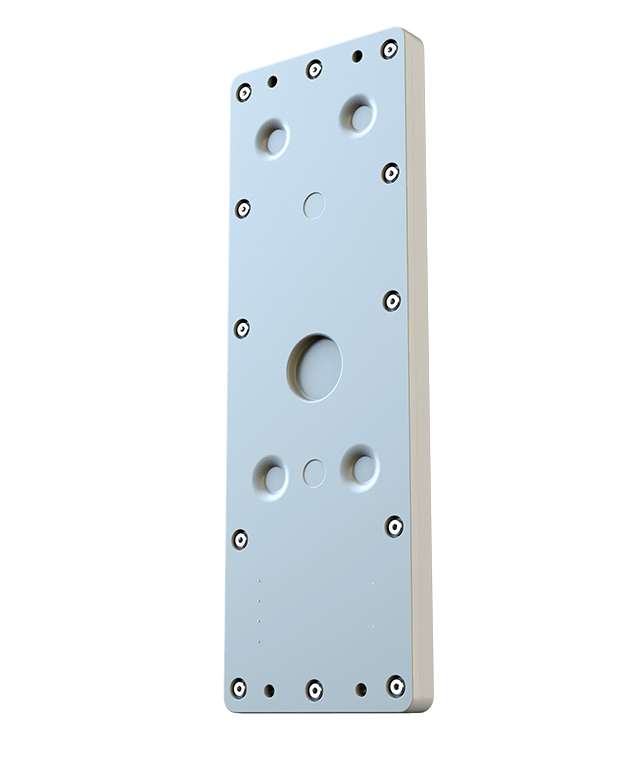

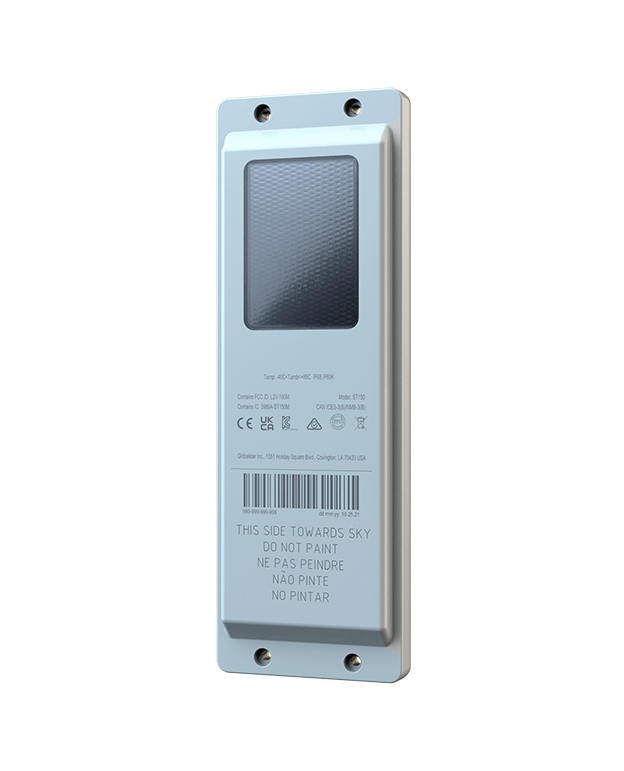

Next generation solar-powered asset tracking and edge processing
Zero-maintenance with the longest-lasting battery and shelf life available, Integrity 150 features BLE connectivity and edge processing capacity for sensor data, and the support of the Realm Enablement Suite.
Zero-maintenance with the longest-lasting battery and shelf life available, Integrity 150 features BLE connectivity and edge processing capacity for s ... ensor data, and the support of the Realm Enablement Suite.
Zero-maintenance with the longest-lasting battery and shelf life available, Integrity 150 features BLE connectivity and edge processing capacity for s...ensor data, and the support of the Realm Enablement Suite.
The Integrity 150 is the industry’s first solar-powered tracking and monitoring device with an integrated edge application development platform. Featuring Globalstar’s industry-leading low-power design and the longest battery and shelf life on the market, the product includes a GPS receiver, accelerometer, Nordic MCU, standard and customizable messaging capability, BLE5 Bluetooth connectivity for various sensors, and tamper detection.
Key Features
- Open-source common architecture
- Delivers reliable and secure location reporting
- Unprecedented payload options
- BLE 5.0 protocol to connect sensors and edge computing solutions
- Solar-powered batteries can last 10+ years
- Increased shelf life
- Inventory management
- PTP (Previous Track Point)
- Mobile app configures multiple devices at once
- Application Enablement
- Unified API’s
- Extensive Library of Application Software
- Delivers reliable and secure location reporting
- Unprecedented payload options
- BLE 5.0 protocol to connect sensors and edge computing solutions
- Solar-powered batteries can last 10+ years
- Increased shelf life
- Inventory management
- PTP (Previous Track Point)
- Mobile app configures multiple devices at once
- Application Enablement
- Unified API’s
- Extensive Library of Application Software
Specifications
DIMENSIONS
1”(D) X 10.39” (H) X 3.38” (W) 26.6 mm (D) x 264 mm (H) x 86.1 mm (W)
WEIGHT
14.2 oz/402 g
With optional mounting bracket 32.02 oz. (908 g)
OPERATING TEMPERATURE
-40° F to 185° F (-40° C to +85° C)
BATTERY TYPE
Built-in rechargeable Li-Ion batteries (non-replaceable)
SATELLITE TECHNOLOGY
Global LEO Satellite operation using the Globalstar Satellite Network. See Globalstar website for Coverage Map.
CERTIFICATIONS
FCC, ISED, CE, UKCA - PENDING: ANATEL
STANDARDS
IP68/69K - IEC 60945 (Marine) - MIL-STD-810G for: - High and Low Temperature - Immersion - Dust - Water spray - Thermal Shock - Mechanical Shock - Rail Impact - Vibration (Rail, Truck)
1”(D) X 10.39” (H) X 3.38” (W) 26.6 mm (D) x 264 mm (H) x 86.1 mm (W)
WEIGHT
14.2 oz/402 g
With optional mounting bracket 32.02 oz. (908 g)
OPERATING TEMPERATURE
-40° F to 185° F (-40° C to +85° C)
BATTERY TYPE
Built-in rechargeable Li-Ion batteries (non-replaceable)
SATELLITE TECHNOLOGY
Global LEO Satellite operation using the Globalstar Satellite Network. See Globalstar website for Coverage Map.
CERTIFICATIONS
FCC, ISED, CE, UKCA - PENDING: ANATEL
STANDARDS
IP68/69K - IEC 60945 (Marine) - MIL-STD-810G for: - High and Low Temperature - Immersion - Dust - Water spray - Thermal Shock - Mechanical Shock - Rail Impact - Vibration (Rail, Truck)
Power Better Operational Intelligence with Smart Data
Realm's application enablement platform introduces a new standard to develop AI-driven applications that define and process data at the edge. Quickly spin up vertical specific solutions at a fraction of the cost and development time and transmit data that is smarter and works harder.
- Standards Based Architecture- new features and platform upgrades that can reliably access the same hardware, APIs as previous versions with no specialized coding
- Health Monitoring – Pro-active device health monitoring, superior support
- Application Enablement Platform – Leverage industry leading BLE, Nordic C, comprehensive unified APIs
- Applications Library – Ready built library that also serves as a hotbed for new applications development
- BLE – Sophisticated libraries for sensors, updaters, configuration, and data
Coverage Map
 |
Primary Coverage |
 |
Fringe Coverage (Customers should expect to experience weakest signal) |
Coverage Details
Completion rates based on Remote Telemetry Units (RTU) that are set to transmit a single packet message 3-times (the original transmission plus 2-repeats) in the frequency appropriate for the given regions. This is an estimate of coverage only. Actual Remote Telemetry coverage may vary based on terminal location, terrain features, signal strength, and other factors affecting satellite communications. Coverage may vary. Specifications subject to change without notice. This map indicates areas of potential satellite coverage only. Actual availability of service in any particular country may be subject to government approval.
